Astrophotography: the kit each target needs

Each kind of target needs a different setup. Planets want the longest focal length you can hold steady; the Milky Way wants a wide lens and a dark sky; galaxies want a tracking mount and hours of exposure. This page works out the numbers for each.

Planets 2,000 to 6,000 mm Telescope, barlow, video camera The Milky Way 14 to 35 mm Camera lens on a tripod Galaxies and nebulae 250 to 2,000 mm Telescope, tracking mount, cooled camera Constellations 24 to 85 mm Camera lens on a star tracker

Swipe sideways to see the full chart.

Four targets, four setups. Focal lengths are typical ranges; the tables below give the arithmetic.
Jupiter, best
46 arcsecacross at opposition
Planetary rule
3x to 5xfocal ratio per micron of pixel
20 mm f/1.8, 24 MP
12 suntracked limit, NPF rule
Good image scale
0.8 to 2arcsec per pixel
Lucky imaging
1% to 10%of frames kept

Planets need long focal lengths, a fast video camera and steady air

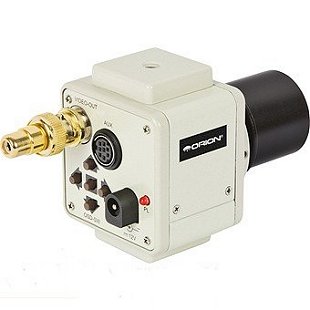

Jupiter is about 46 arcseconds across at its best, Saturn's rings about 44 and Mars rarely more than 25. Imaging them is a fight with the atmosphere, which blurs the view many times a second. Lucky imaging wins it: a small, fast planetary camera records several thousand video frames in a minute or two, and stacking software keeps only the sharpest few percent.

The rule that sets the focal length: for a color camera, the focal ratio should be about 3 to 5 times the pixel size in microns. Shorter wastes the telescope's resolution; longer only makes the image dimmer.

SensorPixel, micronsTarget focal ratio8-inch focal length, mmJupiter at f/10, pixels
IMX6622.9f/9 to f/141,766 to 2,944156
IMX5852.9f/9 to f/141,766 to 2,944156
IMX6782.0f/6 to f/101,218 to 2,030227
IMX6762.0f/6 to f/101,218 to 2,030227

Jupiter taken at 46 arcseconds through an 8-inch f/10 Schmidt-Cassegrain (2,032 mm) with no barlow. The 2.0 µm sensors reach the same image scale at a shorter focal length, which is why the ASI678MC and ASI676MC suit f/10 Schmidt-Cassegrains with no barlow.

TelescopeNativeBarlow, 2.9-micron pixelsBarlow, 2.0-micron pixels
8-inch f/10 Schmidt-Cassegrain (Celestron C8, NexStar 8SE)f/10nonenone

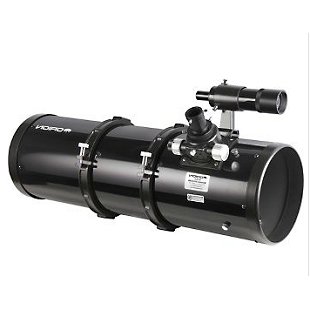

8-inch f/6 Dobsonian or Newtonianf/61.9x1.3x
6-inch f/5 Newtonianf/52.3x1.6x
102 mm f/13 Maksutov (NexStar 4SE)f/13nonenone

Three more things matter as much as the camera:

  • Altitude. Below about 30° the air spreads each planet into a rainbow smear. An atmospheric dispersion corrector (ADC), such as the ZWO ADC, sits ahead of the camera and cancels it.
  • Time. Jupiter turns once in under 10 hours, so a single capture of more than about 2 to 3 minutes with an 8-inch blurs its features. WinJUPOS can de-rotate longer series.

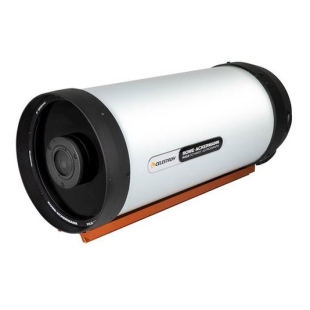

  • Aperture. Detail scales with aperture: an 8-inch resolves features half the size a 4-inch can. Schmidt-Cassegrains (Celestron C8, C9.25, C11) are the usual planetary telescopes because they are long focal length in a short tube.

The planets come round on a yearly cycle; see the planets for when each is best placed.

The Milky Way needs only a camera, a wide lens and a tripod

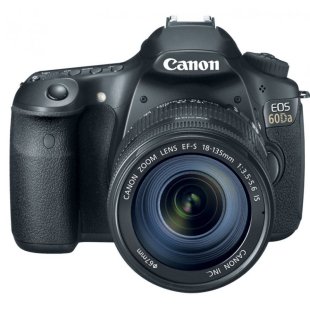

The core of the Milky Way, in Sagittarius and Scorpius, is the most photographed deep-sky target and needs no telescope at all. A recent phone in night mode on a tripod records it from a dark site; a mirrorless camera or DSLR with a fast wide lens records much more.

The limit is how long the shutter can stay open before the Earth's rotation trails the stars. The old 500 rule (500 divided by the focal length) was set for film and is too generous for today's small pixels. The NPF rule also counts the f-number and the pixel size: exposure in seconds = (35 x f-number + 30 x pixel size in microns) / focal length.

Longest untracked exposure, in seconds
LensField, full frame500 ruleNPF, 24 MP FFNPF, 45 MP FFNPF, 24 MP APS-C
14 mm f/2.8104 x 81°36201615
20 mm f/1.884 x 62°2512109
24 mm f/1.474 x 53°21987
35 mm f/1.854 x 38°14765
50 mm f/1.840 x 27°10544

NPF figures are for stars near the celestial equator, the worst case; near the pole the limit is longer. Pixel sizes: 24 MP full frame 5.9 µm, 45 MP full frame 4.4 µm, 24 MP APS-C 3.9 µm.

A star tracker, a small motorized mount such as the Sky-Watcher Star Adventurer GTi or iOptron SkyGuider Pro, turns the camera with the sky and allows exposures of minutes, which brings out the dust lanes and the color of the nebulae. Dark skies matter more than any of the gear: see observing the Milky Way and the Bortle Class 1 sites.

Galaxies and nebulae need tracking, guiding and hours of exposure

Galaxies and faint nebulae are imaged with exposures of 1 to 5 minutes each, stacked to a total of several hours. That takes a tracking mount that holds a star to a fraction of a pixel, which in turn sets how long a focal length you can use. A typical first deep-sky rig is:

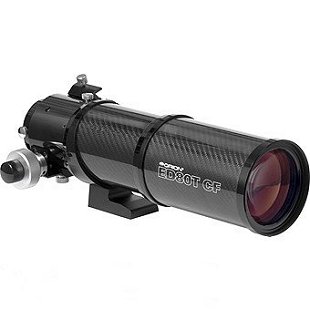

  • Telescope: a 60 mm to 80 mm apochromatic refractor at 300 mm to 500 mm focal length, such as the William Optics RedCat 61, ZWO FF65 or Sky-Watcher Evolux 62ED.
  • Mount: an equatorial or harmonic-drive mount such as the Sky-Watcher EQ6-R Pro, ZWO AM5 or iOptron HEM27.

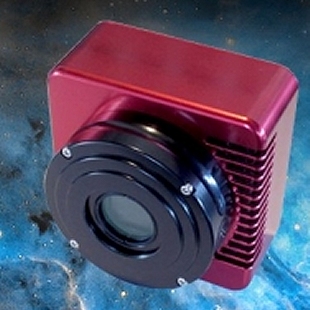

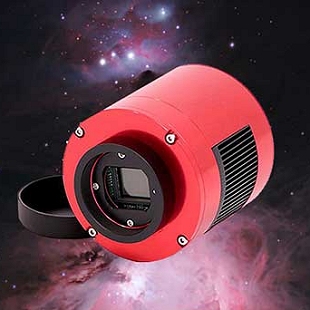

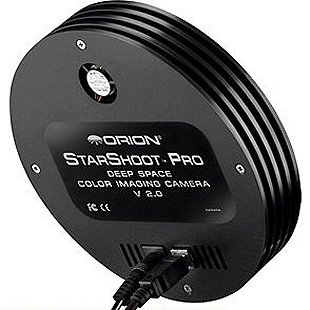

  • Camera: a cooled color camera on the IMX533 or IMX571 sensor (see astronomy cameras).

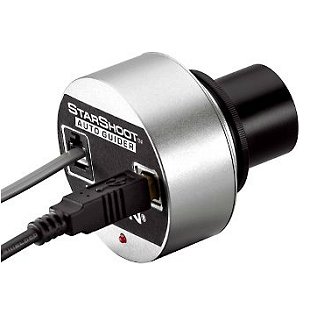

  • Guiding: a small guide scope and guide camera, such as the ZWO ASI120MM Mini or ASI220MM Mini.
  • Control: a ZWO ASIAIR, or a laptop running N.I.N.A. (see imaging software).

The image scale, in arcseconds per pixel, ties camera and telescope together. Under typical seeing of 2 to 3 arcseconds, 0.8 to 2 arcseconds per pixel captures all the detail the air allows; finer only spreads the light thinner, coarser loses detail.

Image scale in arcseconds per pixel
Focal length2.0 microns (IMX678, IMX676)2.9 microns (IMX585, IMX662)3.76 microns (IMX533, IMX571, IMX455)
250 mm1.65 · good2.39 · coarse3.10 · coarse
400 mm1.03 · good1.50 · good1.94 · good
600 mm0.69 · fine1.00 · good1.29 · good
1,000 mm0.41 · fine0.60 · fine0.78 · fine
1,400 mm0.29 · fine0.43 · fine0.55 · fine
2,000 mm0.21 · fine0.30 · fine0.39 · fine

Field of view decides which objects frame well. With an APS-C sensor such as the IMX571:

Focal lengthField, APS-C IMX571Messier objects framedShowpieces that frame well
250 mm5.4 x 3.6°9Andromeda Galaxy, Pleiades, Orion Nebula, Lagoon Nebula, Triangulum Galaxy, Eagle Nebula
400 mm3.4 x 2.2°11Pleiades, Orion Nebula, Triangulum Galaxy, Eagle Nebula
600 mm2.2 x 1.5°22Orion Nebula, Triangulum Galaxy, Eagle Nebula, Pinwheel Galaxy, Bode's Galaxy, Trifid Nebula
1,000 mm1.3 x 0.9°36Pinwheel Galaxy, Bode's Galaxy, Trifid Nebula, Hercules Cluster
2,000 mm0.7 x 0.4°68Hercules Cluster, Whirlpool Galaxy, Dumbbell Nebula, Sombrero Galaxy

Framed means the object's long axis fills between a quarter and 90% of the short side of the frame. Sizes come from this site's Messier dataset. The full grid for four sensors is on the telescopes page.

A smart telescope folds all of this into one box. The ZWO Seestar, Dwarflab Dwarf 3 and Vaonis Vespera find, track and stack automatically; their 150 mm to 260 mm focal lengths frame the large nebulae and galaxies well but render small galaxies as a few dozen pixels across.

Constellations fit a 24 mm to 85 mm lens

A whole constellation spans 20° to 60° of sky, so constellation portraits use ordinary camera lenses. Without a tracker, keep exposures under the NPF limit and stack several; with one, exposures of 1 to 2 minutes bring out fainter stars and the nebulae among them. A soft-focus or diffusion filter swells the bright stars so their colors and the constellation's pattern stand out.

LensField, full frameUntracked limit at f/2.8 (s)Frames
14 mm104 x 81°20The whole Milky Way arch from Cygnus to Sagittarius
24 mm74 x 53°11Orion with the Hyades and Pleiades; Scorpius with the galactic center
35 mm54 x 38°8Cygnus and the North America Nebula region; the Big Dipper
50 mm40 x 27°6Orion alone; Cassiopeia; the Summer Triangle
85 mm24 x 16°3Orion's Belt and Sword; the Pleiades and Hyades together
135 mm15 x 10°2The Pleiades; the Andromeda Galaxy with M32 and M110

Charts for all 88 are on the constellations pages.
